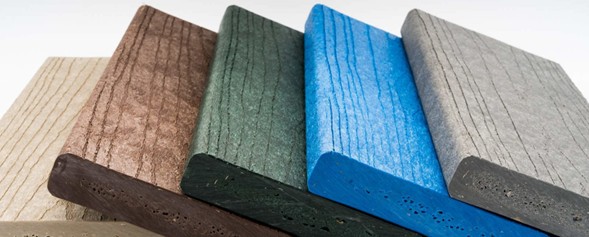

Recycled plastic lumber can provide durable construction products, but color stability, surface aging, dimensional control, and batch-to-batch consistency remain critical for long-term building applications. Courtesy of Tangent Materials.
Construction offers a large outlet for recycled plastics because the sector already uses polymer-based products with long service lives. Roofing membranes, siding, decking, pipes, sealants, drainage components, and composite profiles all create routes for recycled content. Companies such as Plaswood demonstrate how recycled plastic lumber can be used in construction and infrastructure applications.
That range makes direct substitution difficult. Recycled polymers cannot qualify only because they contain post-consumer or post-industrial content. The compound must meet mechanical, fire, weathering, chemical, and dimensional requirements. It must also retain those properties after processing, installation, and exposure without compromising code compliance or service life.
You can also read: Sorting Construction Waste in Real Time.
Cone calorimetry measures reaction-to-fire behavior in polymer materials, including ignition time, heat release rate, smoke production, and mass loss under controlled radiant heat exposure. Courtesy of Motis.
Fire performance often represents the first qualification barrier for recycled plastics in building products. A recycled PP or PE compound may meet tensile, flexural, or impact targets. However, it may still fail flame-spread, smoke-density, or heat-release requirements. The main limitation comes from batch-to-batch variability. Filler level, pigment chemistry, stabilizer depletion, moisture content, and thermal history can all influence ignition response, melt dripping, smoke formation, and heat release.
Fire testing evaluates the finished article rather than the polymer grade alone. A component responds to flame exposure according to its thickness, profile geometry, air gap, substrate, fastening method, and exposed surface area. A hollow profile, for example, can retain heat differently than a solid section. Melt flow index, density, and ash content help characterize the recyclate, but they cannot replace product-level fire testing.
Flame-retardant design becomes more complex when the polymer comes from a recycled stream. A recycled PP or PE fraction may contain carbon black, calcium carbonate, talc, pigments, residual stabilizers, or traces of PA, PET, PVC, and EVOH. These minor constituents can affect melt stability, smoke formation, dripping behavior, and char development during fire testing.
The flame-retardant package adds another formulation constraint. Magnesium hydroxide and aluminum trihydrate often require high loading levels, increasing melt viscosity and reducing impact strength. Phosphorus-nitrogen intumescent systems can promote char formation, but they depend on dispersion quality and moisture control. Carbon black can improve UV resistance, but it can also increase heat absorption in exterior profiles. The goal is to reach the required fire classification without losing processability, weathering resistance, dimensional stability, or recyclability.
Outdoor building products face sunlight, oxygen, moisture, freeze-thaw cycles, temperature swings, pollutants, and biological growth. Virgin polymers allow producers to design stabilizer packages around known molecular weight, additive history, and contaminant levels. Recycled plastics rarely offer that level of control.
Mechanical recycling can reduce molecular weight and increase oxidation. Prior service life can leave carbonyl groups, chain scission, residual stresses, pigment degradation, and stabilizer depletion. When processors convert that stream into siding, decking, roofing accessories, or exterior profiles, the material may age unevenly after exposure. Early appearance can hide long-term instability, which construction warranties tend to notice eventually.
Decking profiles face coupled weathering mechanisms in service, including UV oxidation, moisture exposure, thermal cycling, surface wear, and creep under sustained loads. Courtesy of American Recycled Plastics.
Weathering degradation generally develops through coupled photochemical, thermal, and mechanical mechanisms rather than one isolated defect. UV exposure promotes chain scission and surface oxidation, reducing molecular weight and accelerating gloss loss, embrittlement, and microcrack formation. Thermal cycling can introduce residual stresses and dimensional instability. In dark-colored profiles, higher solar absorptance can increase surface temperature and accelerate creep, warpage, and stress relaxation under sustained loading.
Wood-plastic composites add moisture-related risks. Water uptake near wood fibers or poorly encapsulated filler regions can cause swelling, interfacial debonding, and biological growth. Mineral fillers improve stiffness and dimensional stability, but poor dispersion can create stress concentrations. The profile must retain mechanical integrity, surface stability, and dimensional control after outdoor exposure.
Recycled content increases the need for process and material control during certification. Construction products require stable properties across production lots. A profile, panel, membrane, or pipe cannot show large shifts in melt flow, density, modulus, impact resistance, shrinkage, or thermal expansion when the feedstock source changes.
That requirement pushes recyclers and compounders toward defined acceptance criteria for incoming material. Sorting, washing, density separation, melt filtration, and deodorization help reduce contamination and odor. Compatibilizers can improve phase adhesion in mixed-polymer streams. Stabilizer packages can compensate for prior oxidation or thermal aging. Analytical checks such as ash content, DSC, FTIR, OIT, and melt flow testing can support tighter batch control.
However, each control step adds cost, energy demand, and processing complexity.
Application selection should follow the measured tolerance of each recyclate stream. Recycled PE or PP with stable melt flow, low ash content, and limited polymer cross-contamination can suit extruded drainage channels. It can also fit cable ducts, spacers, or non-structural profiles.
Streams with higher filler content, pigment variation, or broader melt-flow distribution may fit backing layers. They may also suit landscape boards or composite cores, where appearance and tight dimensional control matter less.
Higher-risk products require narrower specifications. Façade panels and pressure pipes need tighter control of creep behavior, oxidation level, and impact resistance. Fire-exposed interiors require stricter control of flame response, smoke formation, and dripping behavior. Load-bearing profiles also need long-term dimensional stability. Recycled content should enter these applications only when feedstock data support the service requirements.
Bio-based coatings use plant oils, lignin, cellulose, and starch to improve sustainability, durability, adhesion, and…
Xenia’s HM Upgrade improves carbon fiber-reinforced thermoplastics with higher stiffness, strength, impact resistance, and dimensional…
Packaging design is shifting toward tactile, emotional, and transparent experiences that build trust with younger…
Microplastics can host microbial biofilms containing pathogens and antimicrobial resistance genes in aquatic environments.
Medical plastics recovery depends on product architecture, contamination control, resin choice, and end-of-life design strategy.
Upcycled nitrile and SBS rubbers can become solid polyamine sorbents for CO₂ capture and rubber…
