Injection Mold Fouling: Formulation and Monitoring

Fouling comes from additive volatility and interfacial energetics. Early shifts in cavity-pressure and ejector-force trends reveal their growth and prompt planned interventions.

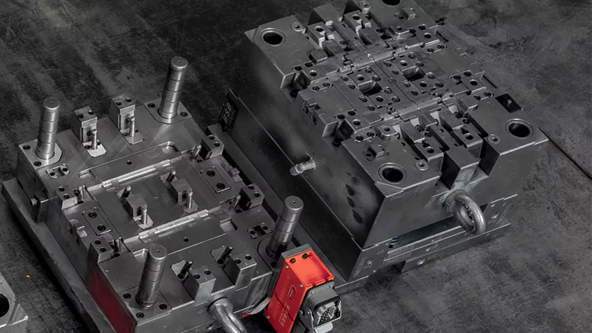

Modern injection molding runs on thin margins and unforgiving schedules. High-cavity tools push complex geometries with aggressive cycles, recycled content is increasingly incorporated into many formulations, and customers are tightening dimensional and cosmetic tolerances across every program. In this environment, mold fouling no longer looks like an annoying maintenance item; it defines real capacity, real scrap rates, and real profitability. Polymer engineers who treat deposit formation as a predictable outcome of formulation chemistry, flow conditions, and surface energetics can secure cleaner tools, longer campaigns, and higher process capability than competitors who still blame “dirty molds” and solvents.

You can also read: Laser Texturing for Molds: From Aesthetics to Function

Mechanism Spotlight

Fouling typically initiates within the polymer compound as internal species redistribute under processing and thermal stress conditions during normal operation.
First, slips, lubricants, process aids, stabilizers, flame retardants, and pigment carriers introduce low-molar-mass species with distinct volatility and polarity profiles.
Then, under high shear and compression, these moieties migrate toward melt–air interfaces, cavity walls, vents, and shut-offs within complex tooling. Next, sharp thermal gradients drive local supersaturation of volatiles, subsequent condensation events, and the progressive growth of thin organic films. Moreover, mismatched formulations generate microphase domains that detach, deposit on cooler steel, and provide nucleation sites trapping additional condensables locally. Recycled or re-compounded streams introduce residues, unknown contaminants, and oxidized chains that decompose into higher volatile loads at setpoints. Consequently, deposition accelerates across multiple hot and cold spots, especially in geometries with stagnant flow, sharp corners, or restricted venting.

Formulation Strategy

Low-fouling compound design therefore prioritizes resin–additive compatibility, robust thermal stability, and tightly controlled volatility across anticipated processing windows and conditions. To begin, formulators select additive packages with solubility parameters near the matrix and decomposition onsets safely above melt temperatures used. In parallel, narrow molecular-weight distributions minimize ultra-mobile oligomers that migrate rapidly toward vents, cold regions, and low-pressure surfaces during processing. Furthermore, tuned-polarity slip and antiblock systems lower steel friction, reduce surface enrichment, and mitigate additive bloom at interfaces over time. At the same time, optimized pigment carriers maintain dispersion quality while avoiding waxy residues or plate-out in hot-runner tips entirely. Equally important, stabilizer and flame-retardant systems must remain effective under real shear, oxygen levels, and residence times encountered industrially consistently. Finally, teams can define a quantitative fouling index, establish performance targets, and rigorously benchmark candidate formulations against standardized processing protocols.

Instrumented Trials and Inline Monitoring

Material evaluation uses instrumented molds with cavity-pressure sensors, thermocouples, and ejector-force measurement to map how each compound drives deposit formation under controlled conditions. Clean steel shows stable pressure curves and tight cavity variation, while fouling shifts peaks, extends fill tails, and increases imbalance. Ejector-force trends highlight adhesion on cores, and thermal or IR data reveal hot spots where deposits disrupt heat transfer and crystallization. These datasets feed growth models that predict time-to-intervention and support approval decisions based on quantified fouling behavior.

In production, the same physics guides real-time diagnostics. High-speed cavity-pressure signals feed multivariate models that isolate fouling signatures—rising peak pressure, shifting switchover, slope changes, and cavity imbalance—well before defects appear. Ejector-load trends show growing adhesion at constant mass and mold-temperature settings, while thermal sensors expose asymmetric cooling. Plants combine these indicators into a cleanliness trajectory and trigger short, targeted micro-cleaning or purge routines at calculated points, turning fouling control into a predictable, model-based intervention strategy.

Cleaning and Surfaces

When inline data flags early-stage fouling, targeted interventions protect both steel and uptime. Engineers respond with purge compounds designed for controlled rheology, polarity, and solvating power to mobilize organic films from flow channels and gates under defined shear. Rather than rely on aggressive abrasives that damage edges, vents, and micro-features, they apply precision methods, dry-ice blasting, CO₂ snow, or tuned laser systems, to remove residue from textured cavities and confined geometries while preserving gloss and dimensional fidelity.

Surface technologies extend protection beyond cleaning. Nitriding variants, PVD coatings, diamond-like carbon, and low-energy functional layers lower the work of adhesion between oligomeric species and steel, reducing deposit nucleation and slowing lateral growth. These engineered surfaces shorten cleaning events and sustain long-term performance. Plants verify the effect through extended shots between cleaning, stable cavity-pressure distributions, and consistent surface quality throughout mold life.

System Architecture

Effective fouling control depends on system-wide coordination. Procurement specifies compounds with transparent additive architectures and proven low-fouling behavior. Developers treat deposit formation as a key formulation metric. Tooling teams design venting, cooling, and coatings for predictable condensation and cleanability. Process engineers tune temperature, residence time, and backpressure to limit volatile generation while maintaining output. Quality and maintenance teams read inline diagnostics, model fouling trajectories, and act before defects appear.

This integrated approach turns fouling from a nuisance into an engineered variable. Plants that apply it extend tool life, stabilize cavity balance, protect critical programs, and measure the gain directly in OEE and CpK.
