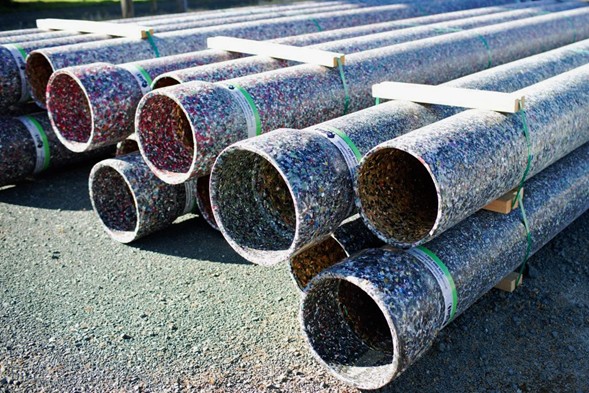

Pipes manufactured from recycled polypropylene and polyethylene blends often contain visible inclusions from mixed recyclates. Such impurities can significantly influence long-term performance. Courtesy of RPM Pipes.
Europe’s transition towards a circular plastics economy drives the integration of recycled content into increasingly demanding applications. In piping systems, performance relies not only on mechanical strength or melt flow characteristics but also on microstructural integrity. Even minor imperfections within recyclates can markedly reduce service life. Recent research from Leoben demonstrates how small concentrations of impurities critically impair slow crack growth resistance and accelerate premature pipe failure.
You can also read: Sorting Out the Facts: Bioplastics and Plastic Recycling Can Coexist.
Microscopy image showing the radial defect size within the pipe wall thickness (t). Such imperfections act as stress concentrators and can initiate crack propagation under pressure. Courtesy of How impurities affect the lifetime of plastic products – A circularity case study on polymer pipes.
Legislation and industry both call for higher percentages of post-consumer recyclates (PCR) in durable products. Polypropylene and polyethylene recyclates already appear in non-pressure piping for drainage and sewerage systems. Standards such as EN 1852-1 and EN 1451-1 set requirements for melt flow, stability, and mechanical integrity. Still, those standards rarely expose the effect of impurities on long-term behavior.
Each batch of recycled material carries hidden irregularities, polymeric residues from mixed waste, pigments, fillers, or inorganic particles. In a virgin polymer, stress distributes uniformly throughout the matrix. In contrast, a contaminated material redirects stress towards these inclusions, where microscopic cracks initiate and grow. Even a small concentration of such defects can trigger localized failure and drastically shorten service life, despite the material meeting conventional mechanical specifications.
Researchers at the Polymer Competence Center Leoben and Montanuniversität Leoben analyzed how different impurity types influence crack growth and structural performance. They compounded two commercial polypropylene recyclates with a virgin extrusion-grade PP at 10 %, 25 %, and 50 % ratios.
They evaluated material integrity through two tests. The Cracked Round Bar (CRB) test quantified slow crack growth resistance under cyclic loading, revealing the polymer’s intrinsic ability to slow fracture. The Hydrostatic Pressure Test (HPT) then examined full pipe sections under continuous pressure at 95 °C, reflecting real field conditions. The comparison between both results showed how intrinsic weaknesses translate into product failure.
Schematic comparison of crack kinetics for materials under identical loading situation, identical defect size, but different slow crack growth resistance (A), as well as for materials under identical load situation and slow crack growth resistances, but different defect size (B). Courtesy of How impurities affect the lifetime of plastic products – A circularity case study on polymer pipes.
Virgin PP resisted crack propagation far longer than any recycled blend. Adding only 10 % of a high-purity recyclate reduced lifetime slightly. The same fraction of a lower-grade recyclate decreased resistance by more than one order of magnitude.
The difference comes from the composition of the recyclates. One source contained mostly clean polypropylene fractions, while the other carried polyethylene residues and rigid inorganic particles. The mixed polymers disrupted the crystalline structure, reduced molecular entanglement, and made the material more prone to chain separation under stress. Inorganic inclusions added another layer of weakness by creating sharp stress points that triggered cracks, which then spread through the pipe wall.
CRB tests isolate the polymer’s intrinsic resistance because the razor notch defines the defect. In that setting, crack growth depends only on the microstructure. HPT exposes the random reality of manufacturing: natural inclusions dominate. The worst defect decides when failure begins, not the average material property.
Under identical pressure and temperature, pipes with only 10 % of the poorer recyclate failed up to seventy times faster than the virgin reference. At higher contamination, lifetime decreased exponentially. Microscopy confirmed large inclusions, up to half a millimeter across, embedded within the polymer. Those defects aligned with crack origins and often produced multiple simultaneous fracture points.
Clean blends showed a single, well-defined crack that advanced predictably. Contaminated blends fractured through multiple paths, with cracks merging and branching chaotically. Polymeric impurities determined how fast cracks grew. Non-polymeric particles defined where they began. The interplay of both dictated overall durability.
Recycled content strengthens circularity only when processors maintain firm control over its variability. Treating recyclates as neutral fillers compromises both reliability and long-term performance. True control begins with prevention: removing contamination before it enters the melt.
Sorting and separation form the first barrier. Near-infrared (NIR) systems distinguish polypropylene from polyethylene, reducing cross-polymer mixing. Melt filtration captures non-polymeric debris such as glass or metal, while continuous screen changers keep extrusion lines clean. When traces of incompatible polymers remain, compatibilizer additives can bridge interfaces and stabilize the matrix.
Quality control, however, does not end with purification. It continues through traceability. Documenting the origin, processing history, and composition of every recyclate batch allows processors to anticipate behavior and exclude unstable material. Routine checks of melt flow, density, and ash content flag anomalies before they reach production.
Even the best systems cannot eliminate every defect. Engineers can therefore design around uncertainty by adjusting wall thickness, reducing internal stress, or limiting recycled fractions to maintain safety margins. Coupling defect analysis with crack-growth testing turns design into prediction rather than correction, ensuring durability even under circular constraints.
Circularity goals will fail without reliability. Every impurity inside a pipe wall holds the potential to compromise decades of service. The Leoben study shows that durability depends not only on polymer chemistry but on microstructural precision.
A robust circular economy must combine material science, quality control, and design awareness. Sorting, filtration, and traceability must become standard practice rather than optional cost. Each step that removes a defect multiplies lifetime expectancy.
