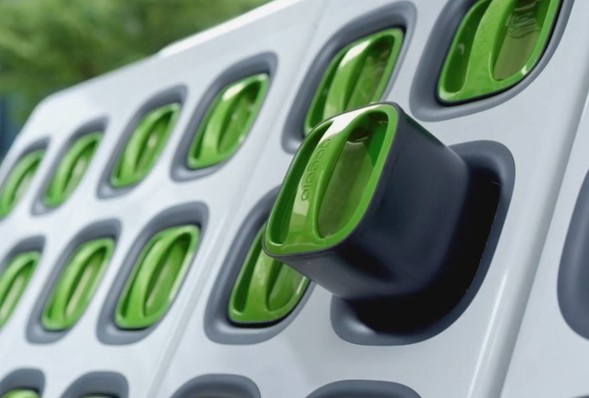

The Power of Battery-as-a-Service. Courtesy of Roboticsbiz.
Battery-as-a-Service (BaaS) depends on one critical factor: reliable and repeatable battery swapping. Each exchange involves heavy, high-voltage modules that must align with sub-millimeter accuracy and survive tens of thousands of cycles. This ambitious model only works if the materials perform flawlessly. Polymer science makes this possible by addressing three essential needs: dimensional stability for robotic interfacing, advanced tribology for endurance, and multifunctional integration for sealed, modular systems.
You can also read: Enhancing Safety in Lithium-Ion Battery Technology.
Alignment failure is the Achilles’ heel of BaaS. Battery modules must resist dimensional changes caused by thermal expansion, moisture absorption, or post-mold warpage. Amorphous polymers such as polycarbonate (PC), polysulfone (PSU), and polyetherimide (PEI) stand out because of their low, isotropic shrinkage and predictable thermal behavior.
When higher chemical resistance or toughness is required, semi-crystalline polymers like glass-filled PA66 or PBT become options. However, fiber orientation during molding introduces anisotropy. Engineers now use advanced mold-flow simulation and strategic gate design to minimize warpage, ensuring tolerance requirements for robotic handling are met across the operating range (−40°C to 80°C).
Battery modules in BaaS face harsher wear conditions than standard EV parts. Guide rails, connector housings, and locking mechanisms must endure thousands of mating cycles under heavy loads.
Internally lubricated thermoplastics, such as PA or PEEK blended with PTFE, graphite, or silicone masterbatches, lower friction and improve wear performance. For latches and locking parts, aramid- or carbon-fiber reinforcements prevent creep and fatigue while protecting metal counterparts from abrasion. Rigorous testing often simulates 10,000+ swap cycles, validating the long-term durability of these material systems.
Molded interconnect device. Courtesy of Fraunhofer IEM.
Swappable battery packs must be robust, sealed, and multifunctional. Polymers enable designers to reduce part count while improving reliability.
Molded Interconnect Devices (MIDs): Using Laser Direct Structuring (LDS) on substrates like PC/ABS or LCP, engineers directly integrate circuits for sensing and communication. This eliminates fragile wiring and connectors.
Sealing Systems: Two-shot overmolding combines rigid polymers with elastomers (e.g., TPVs or silicones) to create permanent gaskets that maintain IP67/IP6K9K ratings after hundreds of compression cycles.
Thermal Management: Polymer composites with boron nitride or graphite fillers achieve thermal conductivity up to 20 W/m·K. These materials function as built-in heat spreaders, channeling hotspots to cooling interfaces.
Polymer engineering transforms battery swapping from a mechanical challenge into a practical, scalable solution. With advances in stability, tribology, and integration, materials science is paving the way for a modular energy ecosystem where batteries can be swapped rapidly, reliably, and sustainably.
